DEV TRAFFIC SYSTEMS AB25-2.5X5 25-Light LED Arrow Board.
DEV TRAFFIC SYSTEMS AB25-2.5X5 25-Light LED Arrow Board.

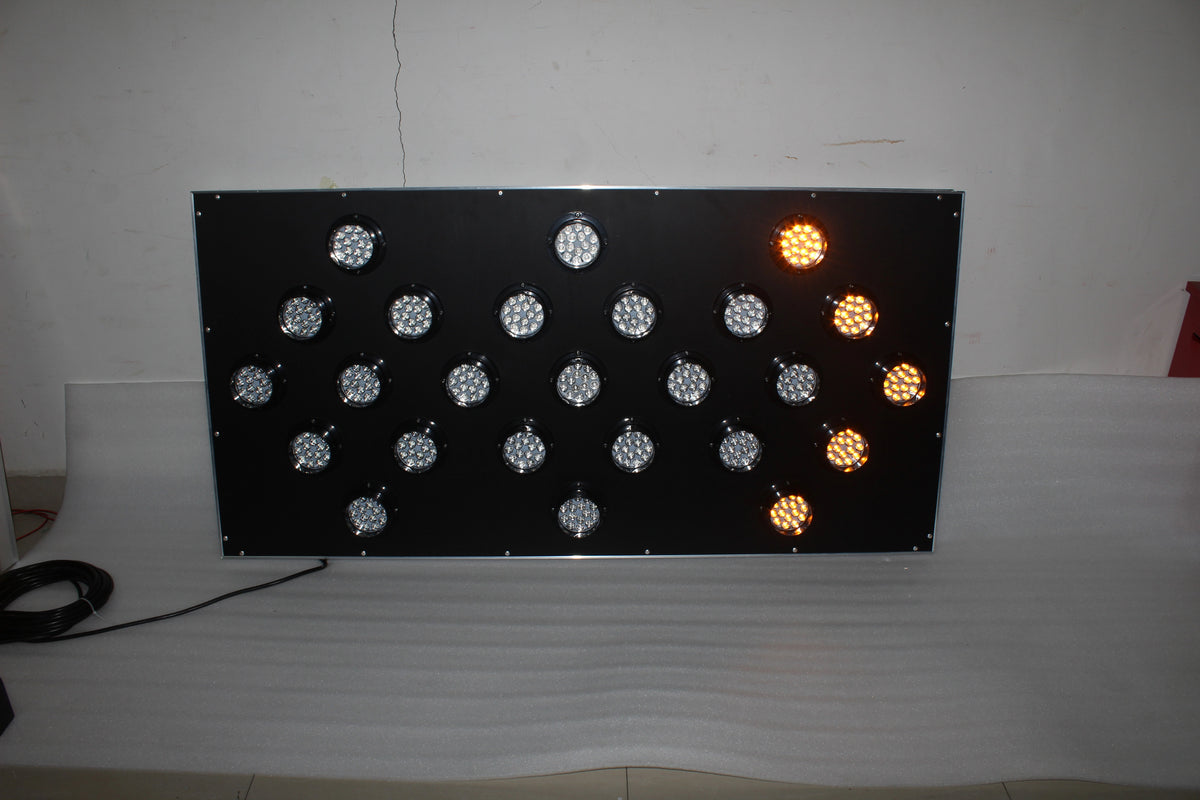

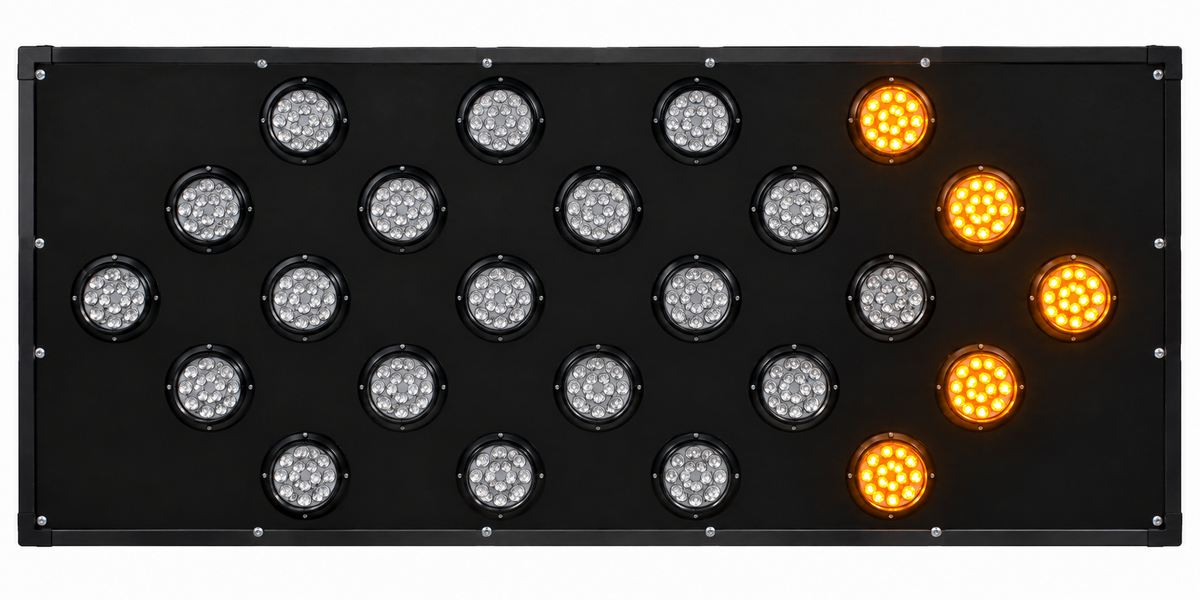

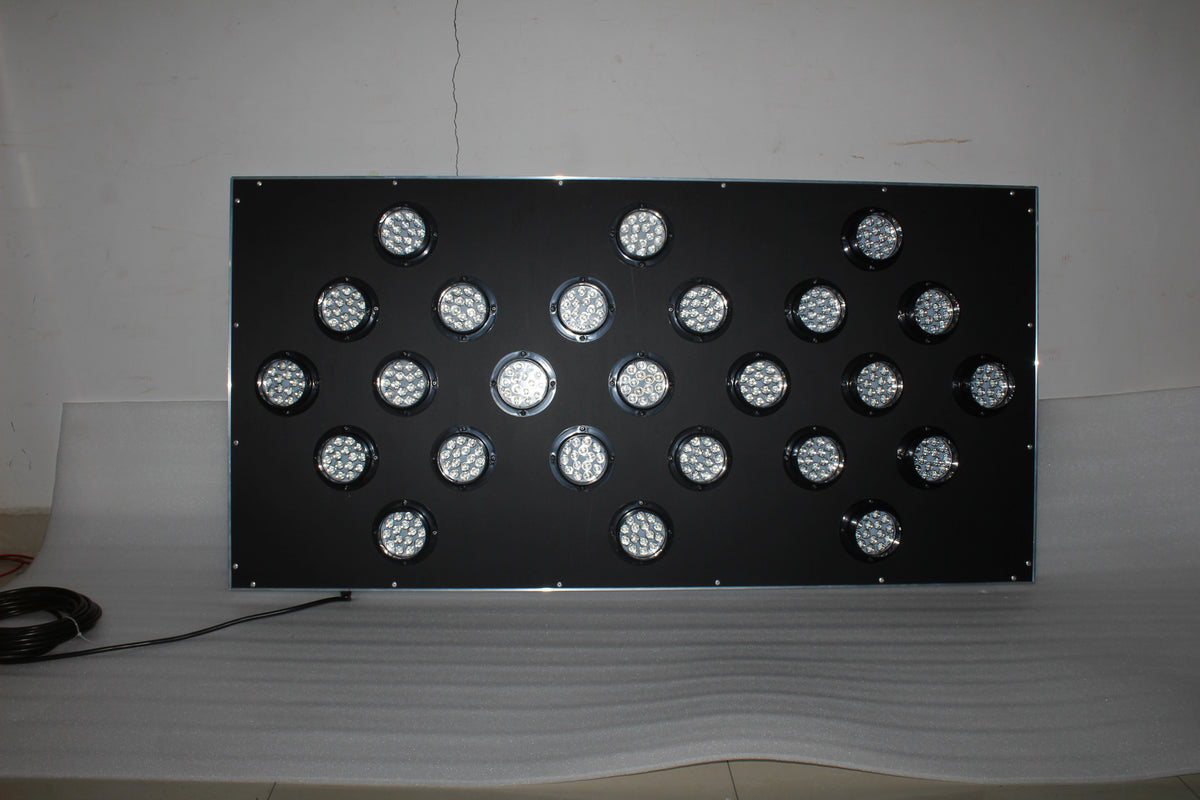

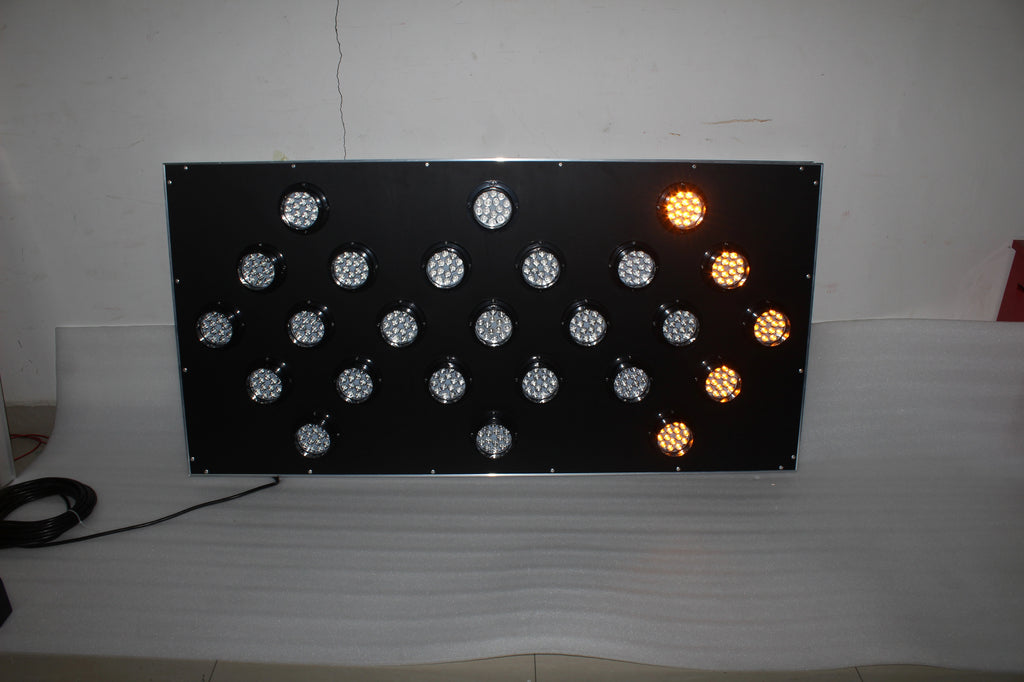

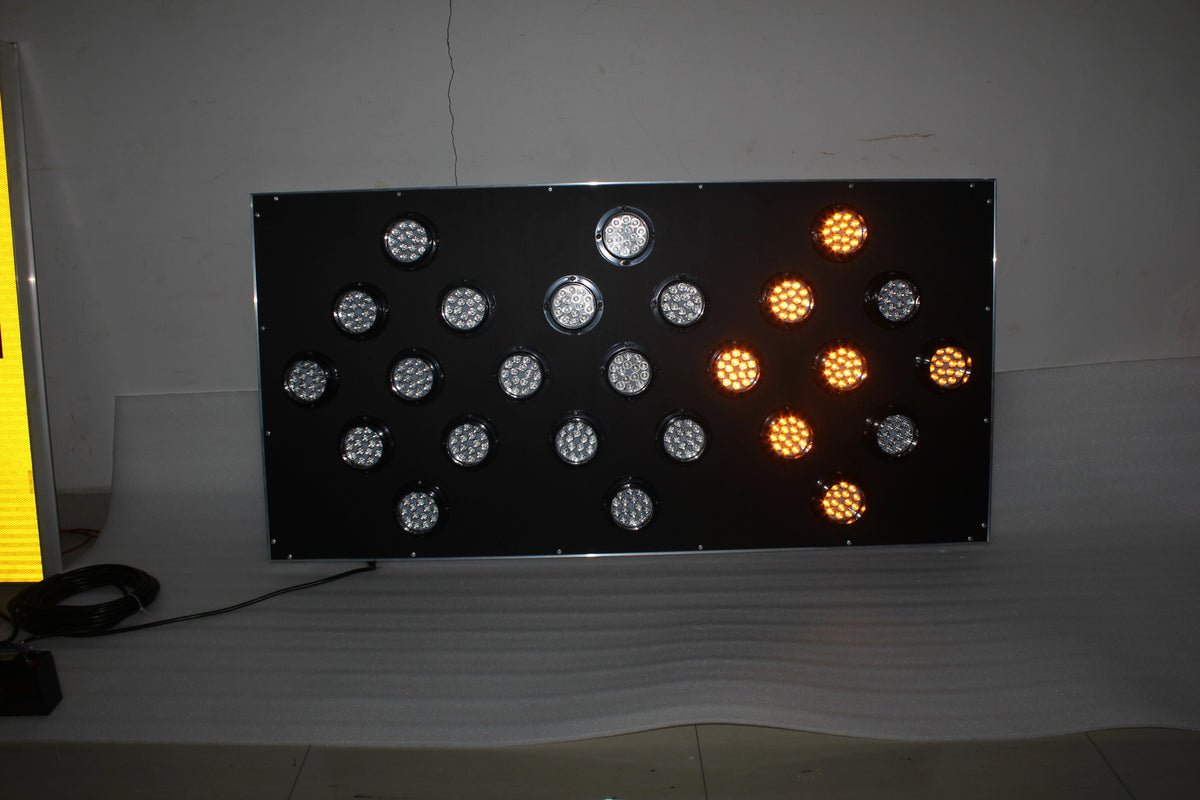

DEV Traffic Systems AB25-2.5X5 25-Light LED Arrow Board
Professional LED arrow board designed for roadway construction, lane closures, maintenance operations, and work-zone traffic control.
The AB25-2.5X5 features 25 high-visibility amber LED modules mounted in a durable aluminum panel. Multiple directional and flashing patterns provide clear visual guidance for approaching traffic.
KEY FEATURES
• 25 high-visibility amber LED modules
• Durable aluminum construction
• Multiple directional and flashing patterns
• Designed for highway and roadway work zones
• Solar/battery-powered configuration
• Replaceable LED modules and visors
• Replacement components available from DEV Traffic Systems
SPECIFICATIONS
• Model: AB25-2.5X5
• Panel Size: 1500 × 750 × 70 mm
• Approximate Size: 59.1" × 29.5" × 2.8"
• LED Quantity: 25 modules
• LED Color: Amber/Yellow
• LED Wavelength: 590–595 nm
• Operating Voltage: DC 9–36V
• Operating Temperature: -40°C to 65°C*
• Visual Distance: ≥1,000 meters*
• Control Mode: Manual / Flash
• Solar Panel: 100W / 18V*
• Battery: 55Ah / 12V*
APPLICATIONS
• Highway construction
• Road construction
• Lane closures
• Work zones
• Road maintenance
• Traffic-control operations
• Contractor and municipal applications
REPLACEMENT PARTS AVAILABLE
DEV Traffic Systems stocks compatible 100mm amber LED replacement modules and replacement visors/shades, making it easier to maintain and repair your equipment without replacing the complete arrow board.
*Certain specifications are manufacturer-listed. Final configuration and specifications should be confirmed for the production unit. Always follow applicable traffic-control requirements and regulations.
